Home > Power Delivery and Digital Power > Digital Power > DC-AC Bidirectional PFC

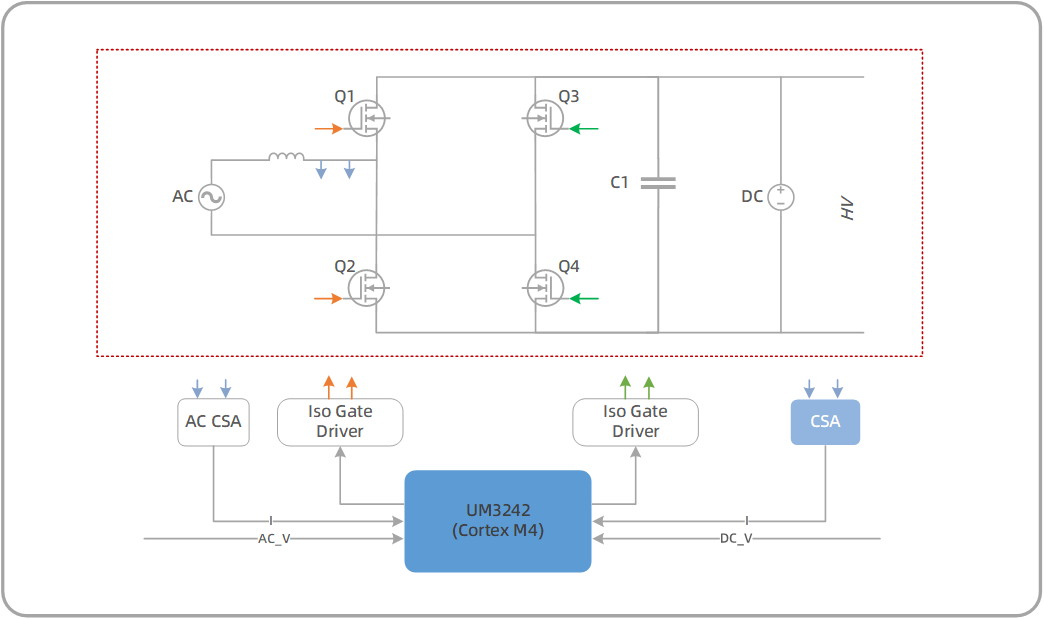

Block Diagram

Function & Advantage

Chip Recommendation

Fully digital control
Two-way bridgeless totem pole topology, with a power of 2kW
The DC side supports 400V programmable input and output voltages
GaN MOSFET and uses a half-bridge isolated driver

UM324xF
